The world of PC hardware moves fast. Just when you get comfortable with one standard, a new one arrives. With ATX 3.1 power supplies (PSU) now on the market, PC builders are asking a critical question: is this a must-have upgrade, or is an ATX 3.0 PSU still perfectly fine?
This is especially important for PC gamers and DIY enthusiasts building high-performance systems. Let's get right to the simple answer and break down exactly what you need to know.
What is ATX 3.0? The "Game Crash" Solver
For a long time, the ATX 2.x standard was all we needed. But new graphics cards, like the NVIDIA RTX 40-Series, introduced a huge challenge: power excursions, also known as transient spikes.
For example
Your new 600W GPU might suddenly demand 1800W for a split second. An older ATX 2.x PSU would see this as a dangerous short circuit and shut down your whole PC to protect itself. For you, this means a frustrating "random crash" in the middle of a game.
The ATX 3.0 standard was built specifically to handle these spikes. It requires the PSU to supply that massive, brief burst of power without shutting down.
That is to say, for gamers, the main benefit of ATX 3.0 is stability. It stops those random, power-related game crashes. It also introduced the new 16-pin 12VHPWR connector, designed to deliver up to 600W through a single cable.
What is ATX 3.1? The "Safety Fix"
ATX 3.1 is a small but critical fix. It was released just over a year after 3.0 to solve a widely reported safety issue.
The Improvement of ATX 3.1

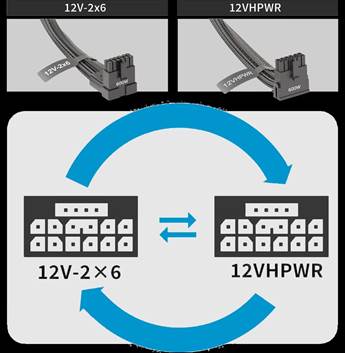

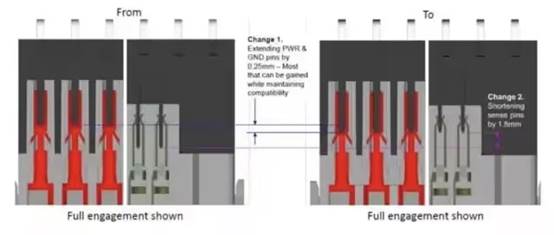

The 12VHPWR connector from ATX 3.0 had a problem. If not plugged in perfectly, it could overheat and melt, especially on high-end GPUs. ATX 3.1 directly addresses this by replacing the 12VHPWR connector with a new, safer version called the 12V-2x6 connector.
However, both ATX 3.0 and 3.1 have the exact same excellent requirements for handling power excursions. ATX 3.1 is just as robust at preventing game crashes. The debate is based on a minor, 5-millisecond change in "hold-up time" that is unnoticeable to any user.
ATX 3.0 vs. 3.1: The Key Differences for Gamers
| Feature | ATX 3.0 | ATX 3.1 | Does it Matter? |
| Safety & Reliability | 12VHPWR (labeled "H+") | 12V-2x6 (labeled "H++") | HIGH. This is the main reason to choose 3.1. The 12V-2x6 is a safer, mechanically-improved design to prevent overheating/melting issues seen with the 12VHPWR. |
| Performance (Spike Handling) | Excellent. Must handle 200% power spikes. | Excellent. Must handle 200% power spikes. | NONE. Both are equally great at preventing power-related game crashes. |
| Hold-Up Time | Required 17ms at 100% load | Required 12ms at 100% load | VERY LOW. This is a minor technical relaxation. A 5-millisecond difference is unnoticeable. This change should not influence a purchasing decision. |
| Future-Proofing | Fully backward compatible. | Fully backward compatible | FULL. Both standards work with all ATX motherboards and older components (CPU 8-pin, 24-pin, etc.). The new connector is only for PCIe 5.0 GPUs. |
Should You Get an ATX 3.0 or 3.1 PSU for Your Gaming PC?
For New PC Builds
It is highly recommended to get an ATX 3.1 PSU.
When building a new PC, there is no reason to buy hardware based on a deprecated, less-safe standard. An ATX 3.1 PSU gives you all the power-spike benefits plus the critical safety fix of the 12V-2x6 connector.
For Existing Builds (with an ATX 3.0 PSU)
No, you do not need to replace your ATX 3.0 PSU.
If you already own a quality ATX 3.0 unit, don't panic. It still has the most important feature: handling power excursions to prevent crashes. You just need to be extra careful with the 12VHPWR cable:
- Push the cable in all the way until you hear it "click".
- Do not bend the cable sharply near the connector.
Need to Update Your Gaming Gears? Huntkey Back You Up
When looking for a reliable, future-proof power supply, make sure the specifications explicitly state "ATX 3.1" and "PCIe 5.1". This confirms it has the new, safer 12V-2x6 connector.
Huntkey’s lineup offers fully compliant options for every build, the hot-sale:

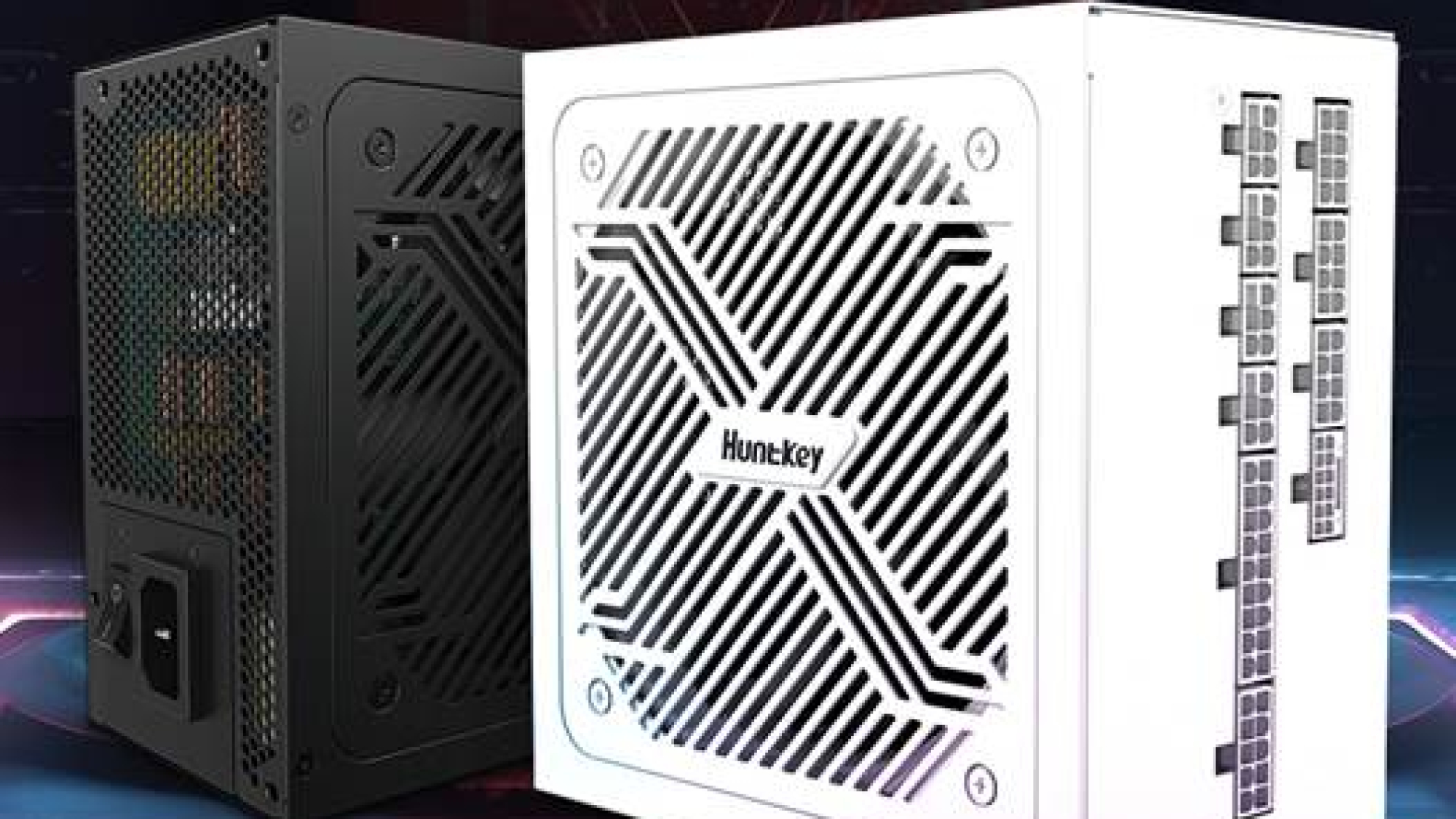

The Huntkey GX850M provides 850W of 80 PLUS Gold power, perfect for mid-to-high-range builds and fully ATX 3.1 compliant.
For high-end enthusiast builds, the Huntkey MVP P1200 offers 1200W of 80 PLUS Platinum efficiency, ready for ATX 3.1 and PCIe 5.1 to power the most demanding systems safely.
